Live Trace Explorer Diagram Missing for Specific Project

Published Date: November 19, 2025
Audience: Everyone
Products and Versions Covered: Jama Connect®

Use Case

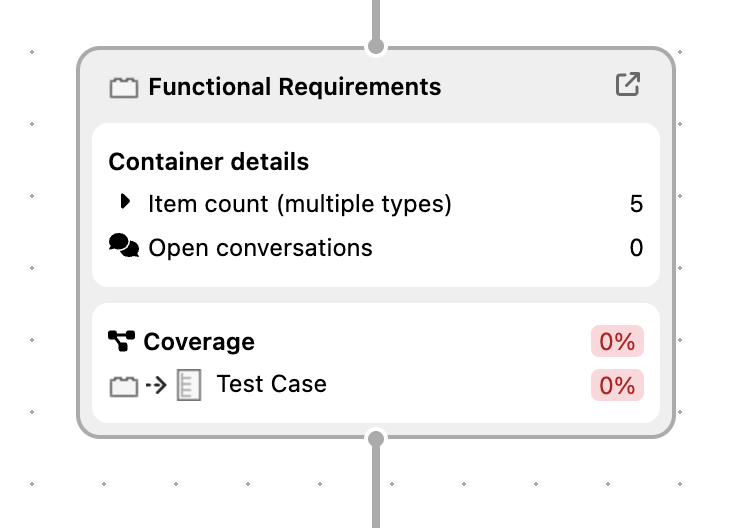

When creating a Live Trace Diagram, under Coverage, it shows that there are "No Relationships Defined".

Best Practice

Check the applied projects and ensure that the project is listed under projects applied to the relationship model.

Implementation

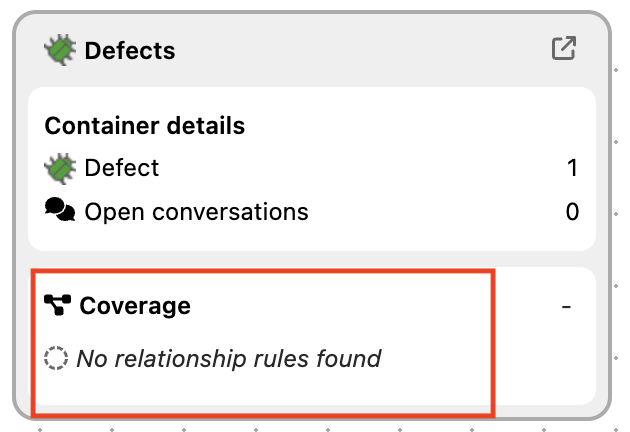

1. Diagram displays "No Relationship Found".

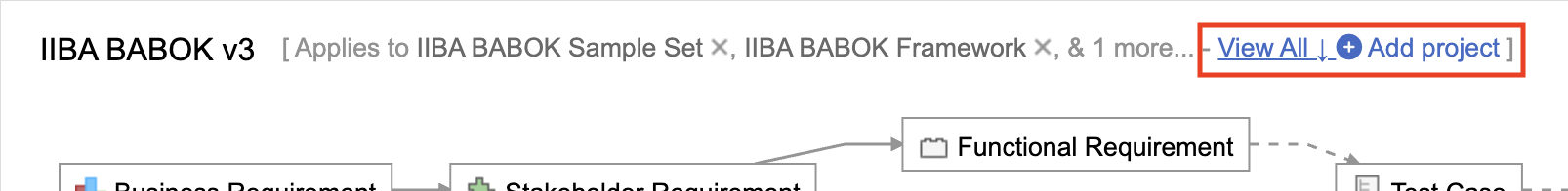

2. Select "View All" to view all projects applied to relationship diagram. If the project isn't applied to the relationship diagram, add the project and create the LTE diagram again.



3. After those changes have been made, the diagram is successfully created and shows the relationships.
