Word Export Template: Items in Tables with Upstream Relationships (Macros for clean up)

Published Date: July 1, 2026
Validated: Yes
Audience: Everyone
Products and Versions Covered:

Jama Connect® version(s)
- Cloud/CVC
- Self-hosted

Summary

Word Export Templates cannot place a table inside another table, so the Office Template cannot show related upstream items as a nested table within a column. When exporting from Jama, this limitation causes the output to generate separate tables per Component, Set, or Folder, split across the document.

The macros here don't create nested tables — they join these separated tables into one continuous table and remove any leftover tables that contain only a header row. Which macro to use depends on whether Jama's whitespace-cleanup export parameter is turned on or off.

Resolution

What the export template does

The export uses the Default Template, so you can export from any location in the Explorer or Filters. It formats all Components, Sets, and Folders as headers and places all items in a table containing: Item Name, Item ID, Description, and Upstream Items.

Check your export settings
A December 2020 release of Jama Connect added a parameter for Office Exports to clean up whitespace in the output. Check whether this parameter is enabled before choosing which macro to use.

Option A: If whitespace cleanup is OFF, Use the Table Joiner macro.

Scenario	Issue Addressed	Clean Up Action
Jama is not cleaning up whitespace per the export parameter	Tables are separated by newlines in the doc, resulting in single-row tables of items	Macro adjusts widths of tables with 4 columns (set based on Item table) and joins tables separated by newlines
Components, Sets, and Folders without items	Single-row table containing only table headers	Macro uses the name of the first column and the count of rows to identify and delete tables that contain only a header row

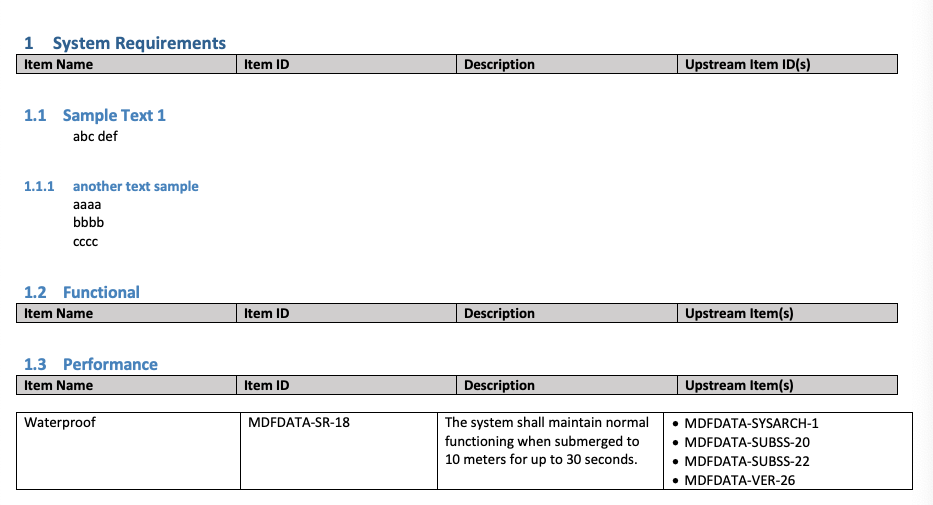

Before Macro

Table joiner - before macro.png

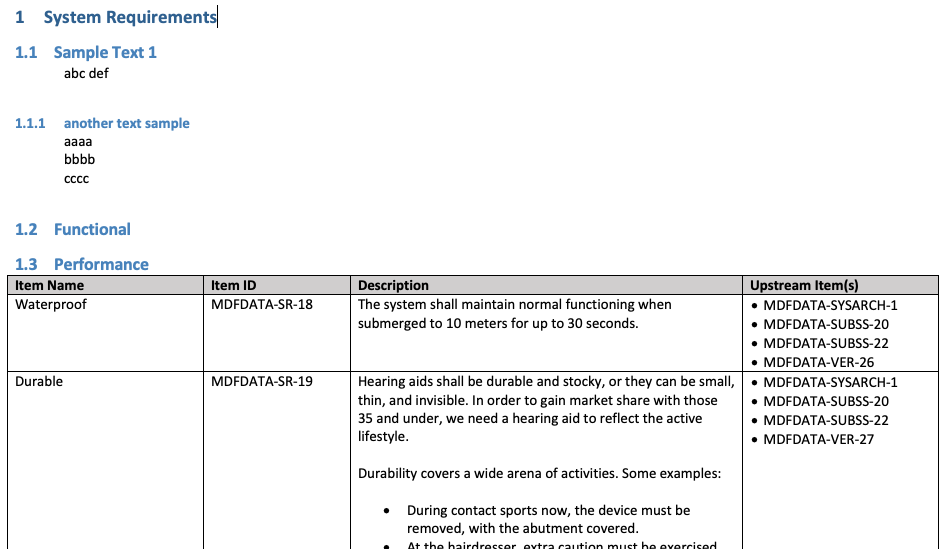

After Macro

Macro asks user to:
- Run table joiner
- Run deletion of single row tables
- Save file as docx (this is just a reminder message)

Option B: If whitespace cleanup is ON — use the Header Alignment Macro

Scenario	Issue Addressed	Clean Up Action
Jama is cleaning up whitespace per export parameter	Combined tables have misaligned header rows (different column widths)	The macro adjusts the widths of the 1st row columns to match the widths of 2nd row
Components, Sets, and Folders without items	Single-row table containing only table headers	Macro uses the name of the first column and the number of rows to identify and delete tables that contain only a header row

Before Macro

After Macro

Macro asks the user to:
- Run header alignment
- Run deletion of single-row tables
- Save file as docx (this is just a reminder message)

Note on macro security:

Enable macros only from trusted sources. Confirm the macro file comes directly from this article before running it.

Deployment:

Upload the applicable macro file to Office Export Templates.
