Resizing images & diagrams in an export or report

Author: Jakob Khazanovich

Date: June 23, 2025

Audience: Everyone

Environmental details: All Jama Connect Environments

Summary

When images from rich text fields are exported from Jama Connect, they will match the same size they appear in Jama. To control image sizing in exported documents, you can either resize images before export or use one of the solutions outlined below.

If you frequently need consistent image sizing, using a Velocity report or a Word macro may save time.

Solution

Office Templates (Word):

• Manually resize images after exporting
• Add a macro to your template to resize images automatically when the file is opened

Velocity Reports:

• Configure image resizing directly in the report definition so they export at the desired size

Cause

By default, Jama Connect exports images at the same dimensions displayed in the rich text field of an item.

Prevention

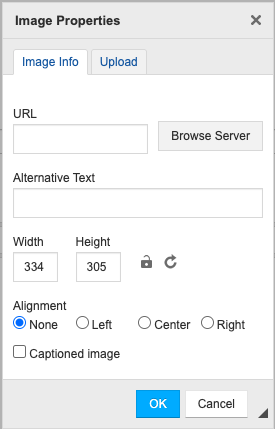

1. Resize the image in Jama Connect before exporting:

• Enter Edit Mode for the item.
• Double-click the image.
• Adjust the Width and Height as desired.
• Click OK to save.

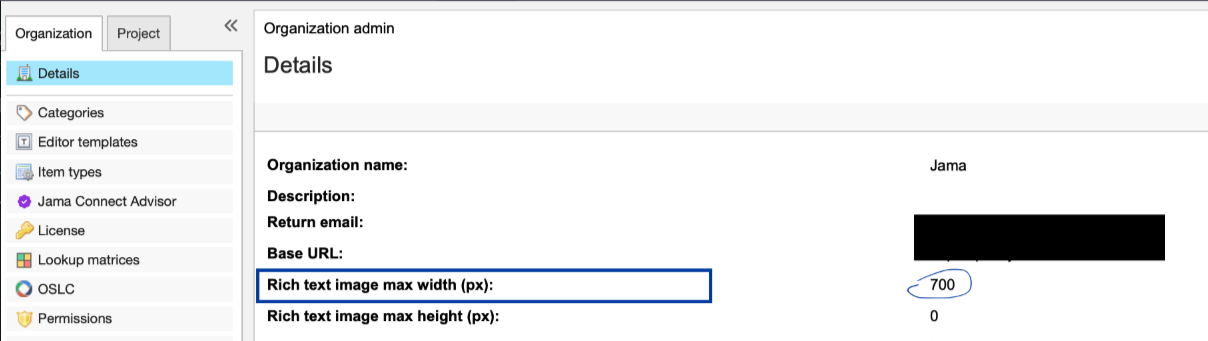

2. Set max image size in the Admin tab*

• As an Organization Admin, go to the Admin tab > Details > Edit
• Modify the "Rich text image max width (px):" field



• Leaving max height as "0" will allow any vertical size

• Adding a constraint on width (e.g., 600-700 pixels) means Jama will shrinks all images embedded into rich text fields to that max width automatically

  • This may take some trial and error, but ~700 pixels generally fits most vertical oriented pages well

  *NOTE: This change does not affect existing images. It will only apply to images added after changing the max-width setting.

References

• Request a Custom Velocity Report
• Request Office Templates Training
• Request a Solution Offering or Training from the Success Catalog

Please feel free to leave feedback in the comments below.
